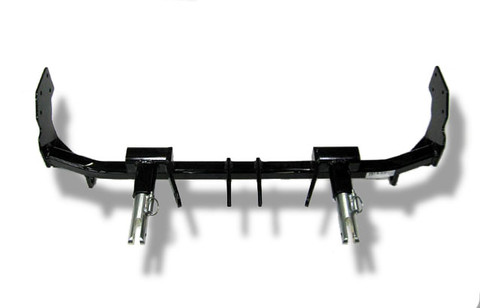

  • Base Plate used for flat towing
  • Fitting a base plate to Suzuki Swift  for flat towing
  • Custom Build Base Plate for flat towing Toyota  Hilux with genuine Ally Bar

A-Frame Towing Base Plate

Call for more details: 0409 581 471
$342.00 (all sizes white)

$360.00 ( Opaque 1800 only)


This product is non-returnable after purchase
Weight:
1.00 KGS

 Product Description



The base plate is an engineered mounting point fitted to front of the vehicle so the a-frame has something to connect to similar to a tow bar on the rear of a vehicle for towing a trailer. The A-Frame is inserted into the tow bar of the motor home and is then connected to the base plate at the front of the towed vehicle with all safety cables, brake cables and wiring for rear lights.
The tow bar rating and size of the motor home also determines what type of vehicle you can flat tow, so before buying a vehicle please contact us at Northcoach RV Equipment on  0409 581 471 to discuss if we have a base plate suitable for the vehicle you are looking to flat tow and that your motor home size and tow bar rating are okay to tow a specific vehicle
In the event that we cannot supply you with an "off the shelf base plate", We do offer custom built base plates ( please contact us to discuss this further)
Many Baseplates are designed to use existing holes and hardware to mount the baseplate to the towed vehicle. Even though bolts are there, do not assume they are adequate for baseplate mounting. Always use hardware supplied in the hardware kit
Please note that baseplate height measurements are approximate and may vary slightly depending on suspension and the size and type of tyres installed on the towed vehicle
  • Each base plate is specific to the year, make and model of vehicle.
  • All Base Plates are Engineer Certified with Australian Design Rule 62/02.
  • Each base plate comes with an Engineers Certificate that must be carried in the towed vehicle or motor home at all times.

Even though we have a base plate or custom build a base plate to flat tow a particular vehicle it is the owners responsibilty to check with the dealership that the vehicle is suitable for flat towing.


Please read the vehicles owner's manual you would like to flat tow or consult your dealerships service manager for the correct flat towing procedures.
 Failure to comply with your vehicle's owner's manual could result in property damage or personal injury.
.
Please Phone 0409 581 471 or Email enquiries@northcoach.com.au for shipping and purchase questions
