NSA RV Products

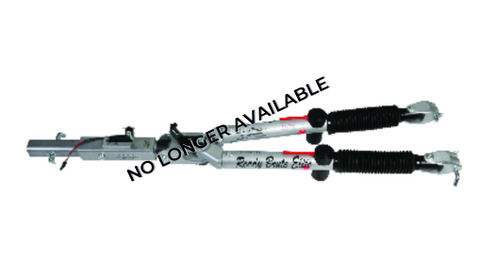

READY BRUTE ELITE A-FRAME

Please call for pricing PH: 0409 581 471
$342.00 (all sizes white)

$360.00 ( Opaque 1800 only)


This product is non-returnable after purchase

 Product Description

Northcoach RV Equipment is the exclusive distributor of Ready Brute Elite A-Frames in Australia.

Flat towing with The Ready Brute Elite A-Frame is more than just an A-Frame, it combines a high quality A-Frame with the revolutionary ReadyBrake™ surge braking system. The Ready Brute Elite A-Frame is constucted out of powdercoated aluminium to minimise weight and rusting. The Braking system is powdercoated steel contruction and fits into the motor homes  2" receiver. The whole A-Frame folds up and stows on the back of the motor home.


Features

  • Stows on Motorhome when not flat towing
  • Aluminium and Steel construction
  • Integrated Ready Brake system
  • Rated for 2200Kg  towing capacity
  • Powder coated finish for extra durability
  • Rubber boots cover leg extensions keeping operation smooth and free from dust
  • Non-binding clevis design makes it a breeze to hook up and unhook the A-Frame  even on rough surfaces.
  • Certified to Australian Design Rule 62/02
  • Engineers certificate supplied.

Specifications

  • Rated for 2200Kg  towing capacity
  • Weighs only 19Kg
  • 1 Year Warranty on Ready Brute Elite A-Frame

Please Phone 0409 581 471 or Email enquiries@northcoach.com.au for shipping and purchase questions

How The Integrated Ready Brake Works:

When braking while flat towing a vehicle behind an RV, stopping distance is increased due to the weight of the vehicle and it's momentum pushing against the RV.  The ReadyBrake uses this energy to compress a shock absorber and spring inside the brake unit which allows the actuator arm to move forward, pulling down the towed vehicles brake pedal by the attached cable.  It takes a few hundred pounds of pressure to activate the ReadyBrake, so the towed vehicle can follow the RV down a steep mountain grade only applying brakes when the RV's brakes are applied.  After initial install, only an adjustable sling cable is used to connect or disconnect the ReadyBrake. We recommend leaving about 2 inches of slack in the adjustable sling cable to keep the brake from activating while going down dips or over humps like at entrances into fuel stations or van parks. When the RV comes to a complete stop the ReadyBrake actuator arm stays in the forward position continuing to hold the towed vehicle brake pedal down until the RV moves forward a couple of centermetres to disengage it. The ReadyBrake can decrease stopping distance by upwards of 30%.
Choose a set of clevis connectors to attach your Ready Brute A-Frame to your towed vehicles base plate.  We offer clevis connectors to attach to any Blue Ox, Demco or Roadmaster brand base plates.

Please note that this price is for the Ready Brute Aframe only , You will still need to obtain a base plate and brake away kit , please contact us to discuss your base plate options.


Please Phone 049 581 471 or Email enquiries@northcoach.com.au for shipping and purchase questions
